ZT-6 HDD Machine

ZT-6
The hydraulic parts of the ZT-6 Horizontal Directional Drilling Machine are imported or joint venture products. The diesel engine is a YANMAR diesel engine from Japan, which has strong power and reliable performance.

Email: scarlettwang@drilltozt.com

Tel: 008651085582708

Whatsapp: 8618520471441

ZT-6 HDD Machine

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Introduction

Product Description

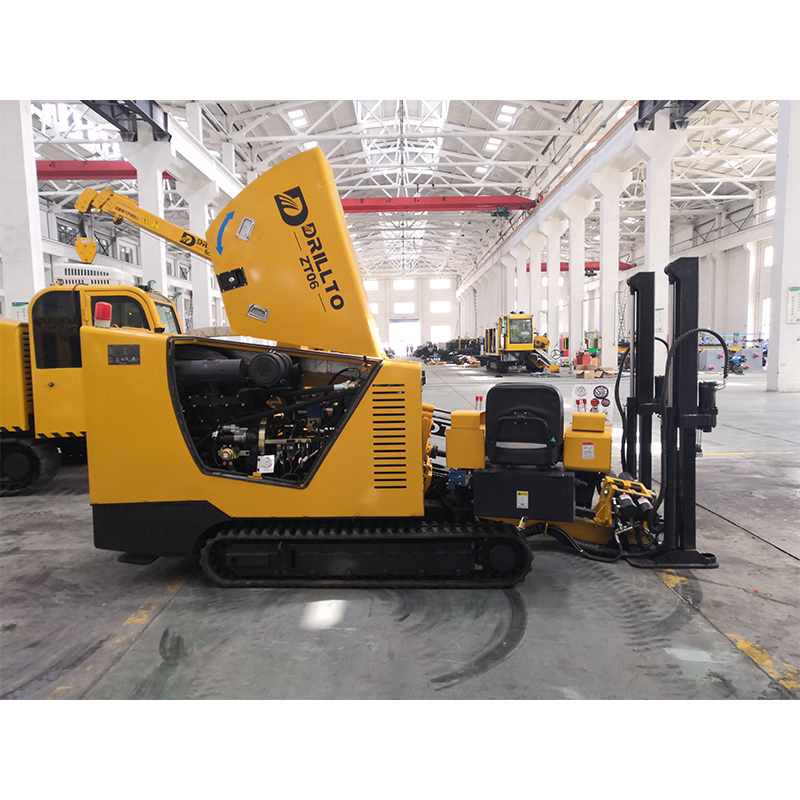

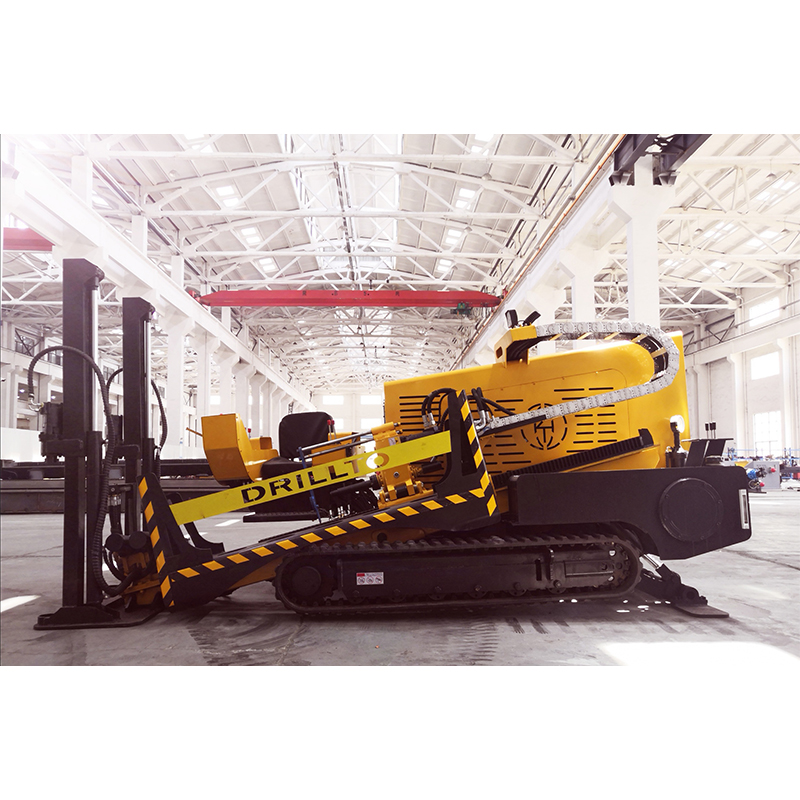

The hydraulic parts of the ZT-6 Horizontal Directional Drilling Machine are imported or joint venture products. The diesel engine is a YANMAR diesel engine from Japan, which has strong power and reliable performance. Rack and pinion structure. The rig is ingenious and compact, suitable for projects with limited construction area and short construction length. Double clamps unscrew and unload the drill pipe, high-speed up load of rods. Equipped with a drill rod support, which is convenient and safe for one-man operation.

Main Technical Parameters of ZT-6

Max Torque	2000N.m
Max Pulling Force	60kN
Yanmar Engine	47.4kW/2200rpm
Max Mud Pump Displacement	80L/min
Walking Speed	2.15km/h
Weight	3750kg
Rod Size	Φ50/Φ42*1800mm
Rotation Speed	0-148rpm
Max Thrusting Force	60kN
Pulling Speed	0-60m/min
Max Mud Pump Pressure	8Mpa
Entry Angle	8°-18°
Dimension（mm）	414014001875
Reamer Size	Φ200-Φ300

Advantage

Use Japaneso YANMAR diesel engine, eficient. and rliable, power curve matching machine model.

The manual drill rod box can hold 50 drill rods, and it is convenient to take the rods from box during work.

The mud pump is equipped with a push pull device, and the structure is exquisite, and it can be pulled out during maintenance to ensure the small size of the machine.
