36AT HDD Machine

36AT HDD Machine

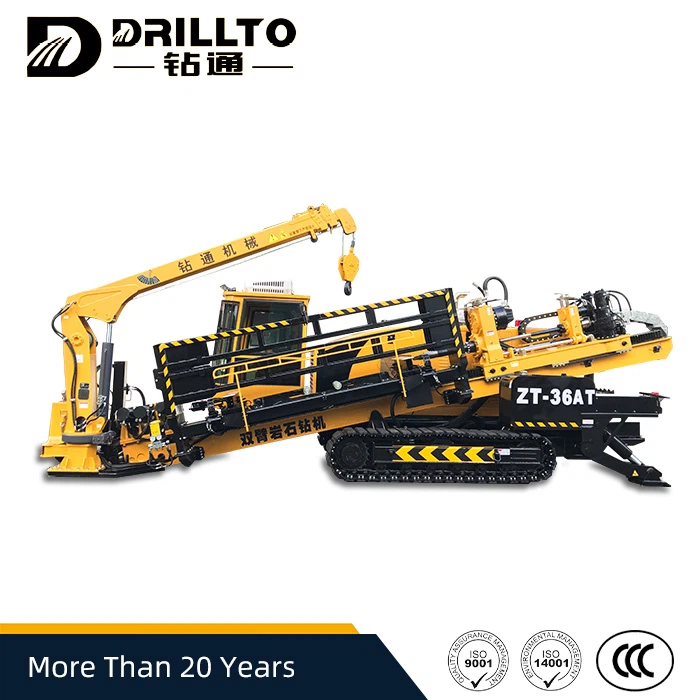

ZT-36AT
Horizontal Directional Drilling Rig HDD Machine is mainly used for trenchless pipeline construction and underground pipeline replacement. The drilling rigs produced by our company are made of imported components, with high construction efficiency, high configuration, high guidance accuracy, saving mud, saving mud motor, save diesel consumption, save drilling tool consumption, save labor cost.

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Introduction

Introduction
Horizontal Directional Drilling Rig HDD Machine is mainly used for trenchless pipeline construction and underground pipeline replacement. The drilling rigs produced by our company are made of imported components, with high construction efficiency, high configuration, high guidance accuracy, saving mud, saving mud motor, save diesel consumption, save drilling tool consumption, save labor cost.

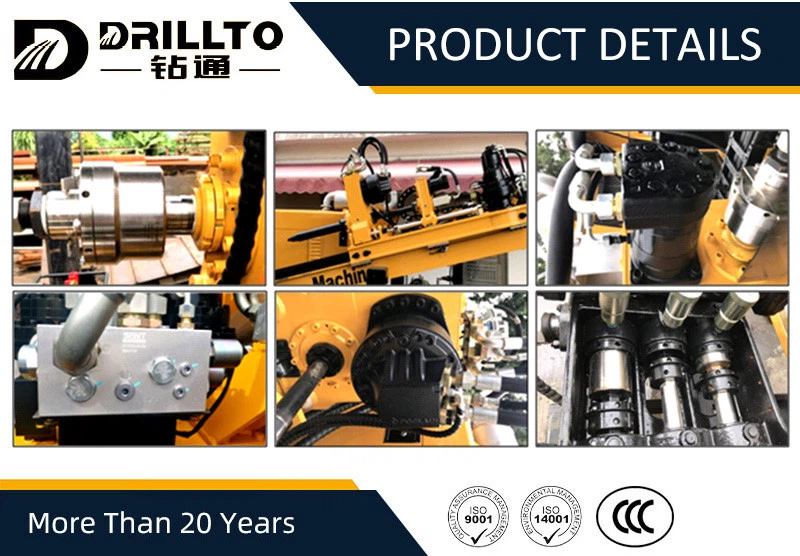

Product features
1. Use a plunger type mud pump with self-lubricating
2. American Dublin rotary joint, precision sealing guarantee.
3. The inner drill pipe motors are all Danfoss brands, and the imported oil pipes and joints have good sealing performance with flange clips.
4. The two-speed valve adopts the Italian-SANT brand, with stable performance and strong control.
5. The large torque Poclain motor drives the outer rod to rotate and ream the hole, which is stable at high speed.



Main Technical Parameters

External Torque:

15000N.m

Rotation Speed:

0-190rpm

Inner Torque:

2700N.m

Rotation Speed:

0-195rpm

Max Pulling Force:

360 kN

Max Thrusting Force:

360 kN

Cummins Engine III:

179kW/2200rpm

Pulling Speed:

0-20m/min

Max Mud Pump Displacement:

400L/min

Max Mud Pump Pressure:

10Mpa

Moving Speed:

2-4km/h

Entry Angle:

8-20°

Weight:

14500kg

Dimension (mm):

8350*2280*2500

Rod Size:

Φ89´3000MM

Reamer Size:

Φ200-Φ900

Rod Size:

Φ50´3000MM

Crane Size:

2T

Cabin with AC:

Can turn 15°

Rod Box:

18 pieces (9*2)
