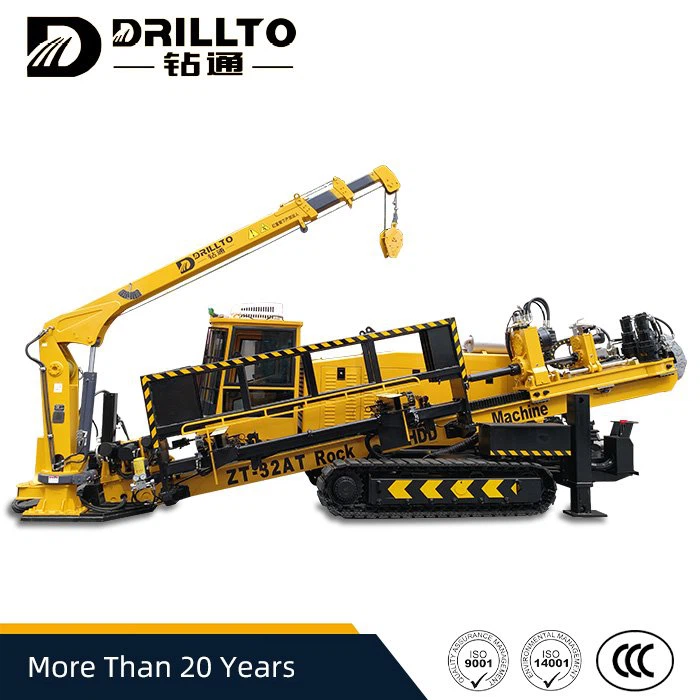

32AT HDD Machine

Home > Products > Horizontal Directional Drilling Machine > 32AT HDD Machine

Products

Hot Product

ZT-6 HDD Machine

95/135T HDD Machine

32AT HDD Machine

ZT-32AT
HDD Boring Machine is superior to the traditional rock drilling technology in the characteristics of "3 High and 5 saving": High construction efficiency. High configuration. High guidance accuracy. Save mud material. Save mud motor. Save diesel consumption. Save drilling tools consumption. Save labor cost.This rock drilling rig can drill both ordinary soil layer and rock formation.

Email: scarlettwang@drilltozt.com

Tel: 008651085582708

Whatsapp: 8618520471441

32AT HDD Machine

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Introduction

Introduction

HDD Boring Machine is superior to the traditional rock drilling technology in the characteristics of "3 High and 5 saving": High construction efficiency. High configuration. High guidance accuracy. Save mud material. Save mud motor. Save diesel consumption. Save drilling tools consumption. Save labor cost.This rock drilling rig can drill both ordinary soil layer and rock formation.

The main technical parameters

Product name	HDD Boring Machine	Rotation Speed of Outer Rod	0-195rpm
External Torque	12000N.m	Rotation Speed of Inner Rod	0-130rpm
Inner Torque	2000N.m	Max Thrusting Force	320 kN
Max Pulling Force	320 kN	Pulling Speed	0-20m/min
Cummins Engine III	160kW/2200rpm	Max Mud Pump Pressure	10Mpa
Mud Pump Max Displacement	400L/min	Incident Angle Entry Angle	8-20°
Moving Speed	2-4km/h	Host size Dimension (mm)	788023002450
Drilling Rig Weight	13850kg	Reamer Size Reamer Size	Φ200-Φ900
Rod Size	Φ89´3000MM	Crane tonnage Crane Size	2T
Rod Size	Φ50´3000MM

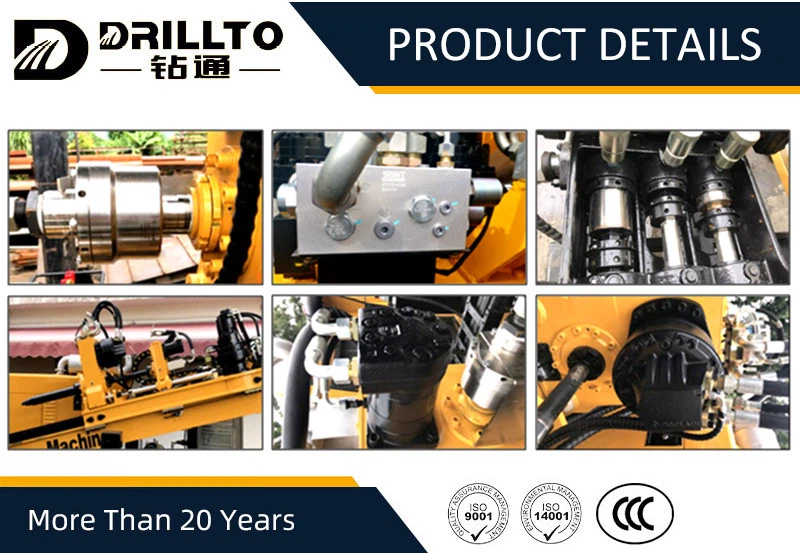

Product features

1.Using Self-lubricating plunger type mud pump.

2.Innerpipe drives the cone bit to conduct drilling, external pipe drives direction.

3.America DEUBLIN swivel with precision sealing performance.

4.Pump and motor for inner pipe are Danfoss, imported tubing, joint using flange clip sealing.

5.Double speed valve using Italian-SANT brand, stable performance, strong control.

6.Apply high torque POCLAIN motor for external pipe rotation. High speed and reliable function.
