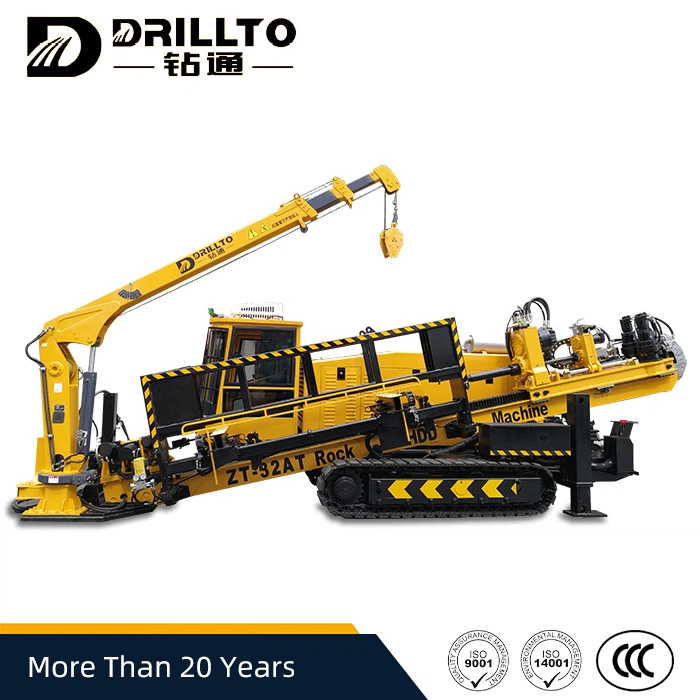

32T HDD Machine

32T HDD Machine

ZT-32AT
32Ton HDD Machine adopts self-lubricating plunger type mud pump and double-arm drill pipe, which has the characteristics of high construction efficiency, high guidance precision and mud saving. Our company can also provide you with customized services and equipment training services.

scarlettwang@drilltozt.com

Tel: 008651085582708

Whatsapp: 8618520471441

32T HDD Machine
32T HDD Machine
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Introduction

Introduction
32Ton HDD Machine adopts self-lubricating plunger type mud pump and double-arm drill pipe, which has the characteristics of high construction efficiency, high guidance precision and mud saving. Our company can also provide you with customized services and equipment training services.



Product features
1. Use a plunger type mud pump with self-lubrication.
2. Double-arm drill pipe.
3. American Dublin rotary joint, precision sealing guarantee.
4. The inner drill pipe motors are all Danfoss brands, and the imported oil pipes and joints have good sealing performance with flange clips.
5. The two-speed valve adopts the Italian-SANT brand, with stable performance and strong control.
6. The large torque Poclain motor drives the outer rod to rotate and ream the hole, which is stable at high speed.



Main Technical Parameters

External Torque:

12000N.m

Rotation Speed:

0-195rpm

Inner Torque:

2000N.m

Rotation Speed:

0-130rpm

Max Pulling Force:

320 kN

Max Thrusting Force:

320 kN

Cummins Engine III:

160kW/2200rpm

Pulling Speed:

0-20m/min

Max Mud Pump Displacement:

400L/min

Max Mud Pump Pressure:

10Mpa

Moving Speed:

2-4km/h

Entry Angle：

8-20°

Weight：

13850kg

Dimension （mm）:

7880*2300*2450

Rod Size:

Φ89´3000MM

Reamer Size:

Φ200-Φ900

Rod Size:

Φ50´3000MM

Crane Size:

2T

Cabin with AC：

Can turn 15°

Rod Box::

12 pieces
