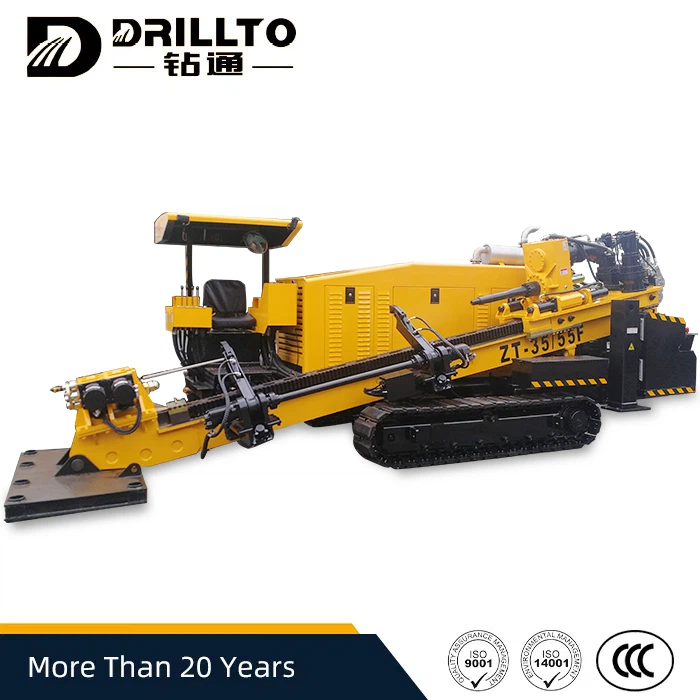

35/55F HDD Machine
ZT-35/55F
The hydraulic system and power system of this HDD Rig Horizontal Directional Drilling Machine adopt well-known brand products at home and abroad, with reliable performance and strong power. The speed of feeding, pulling back, and turning is all increased, all of which are three-speed acceleration.
The hydraulic system and power system of this HDD Rig Horizontal Directional Drilling Machine adopt well-known brand products at home and abroad, with reliable performance and strong power. The speed of feeding, pulling back, and turning is all increased, all of which are three-speed acceleration. The use of plunger motor for rotation greatly improves the rotation efficiency, and the unique patented technology of pull-back force increases the pull-back force to 55 tons. The structure of the drilling rig is compact and the construction area is small.
Product features
1. The main pump is the American Bomke quadruple hydraulic pump, with stable performance and high reliability.
2. The rotation adopts plunger motor, which has fast speed, high efficiency and less heat.
3. The patented technology is used to assist the cylinder, which is simple and practical, and the pullback force is increased to 55 tons.
Main Technical Parameters
|
Max Torque:14000N.m |
Rotation Speed:0-180rpm |
|
Max Pulling Force:35kN/55kN |
Max Thrusting Force:35kN |
|
Cummins Engine:153kW/2200rpm |
Pulling Speed:0-40m/min |
|
Max Mud Pump Displacement:320L/min |
Max Mud Pump Pressure:8Mpa |
|
Walking Speed: 2.5km/h |
Entry Angle: 5-20° |
|
Weight:10500kg |
Dimension(mm):6800*2200*2500 |
|
Rod Size:Φ76x3000 |
Reamer Sizes:Φ200-Φ800 |
