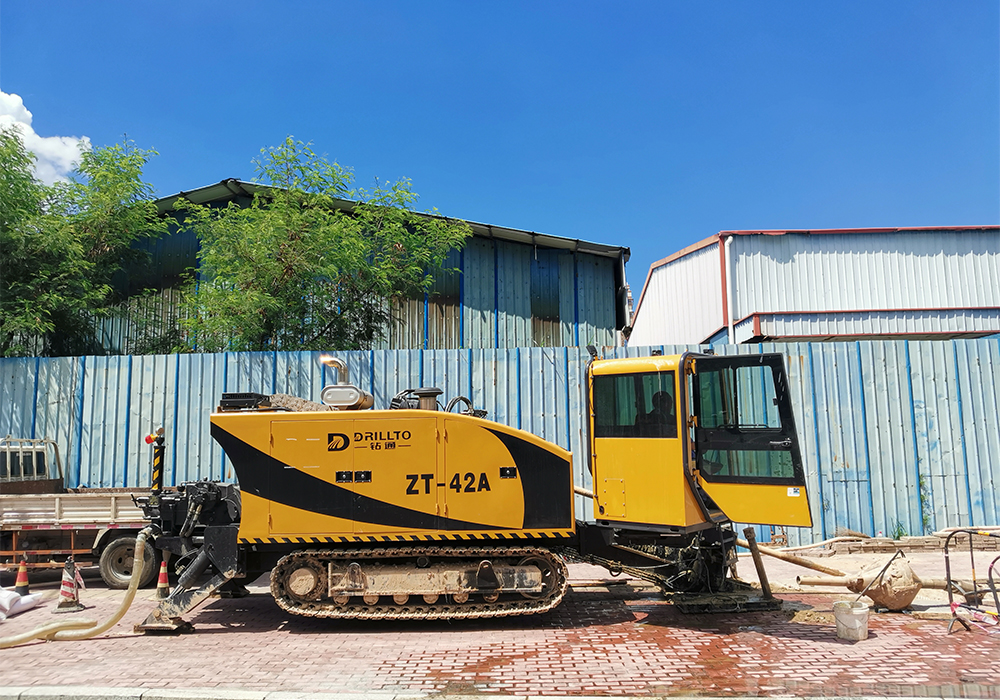

42T HDD Machine
ZT-42
42 Ton HDD Machine is a drilling rig with reliable performance and strong power. The hydraulic system and power system are all well-known foreign brands. It occupies a moderate area and meets the requirements of efficient construction in small sites. It has high efficiency, long life and stable work. Features such as easy maintenance.
Introduction
42 Ton HDD Machine is a drilling rig with reliable performance and strong power. The hydraulic system and power system are all well-known foreign brands. It occupies a moderate area and meets the requirements of efficient construction in small sites. It has high efficiency, long life and stable work. Features such as easy maintenance.

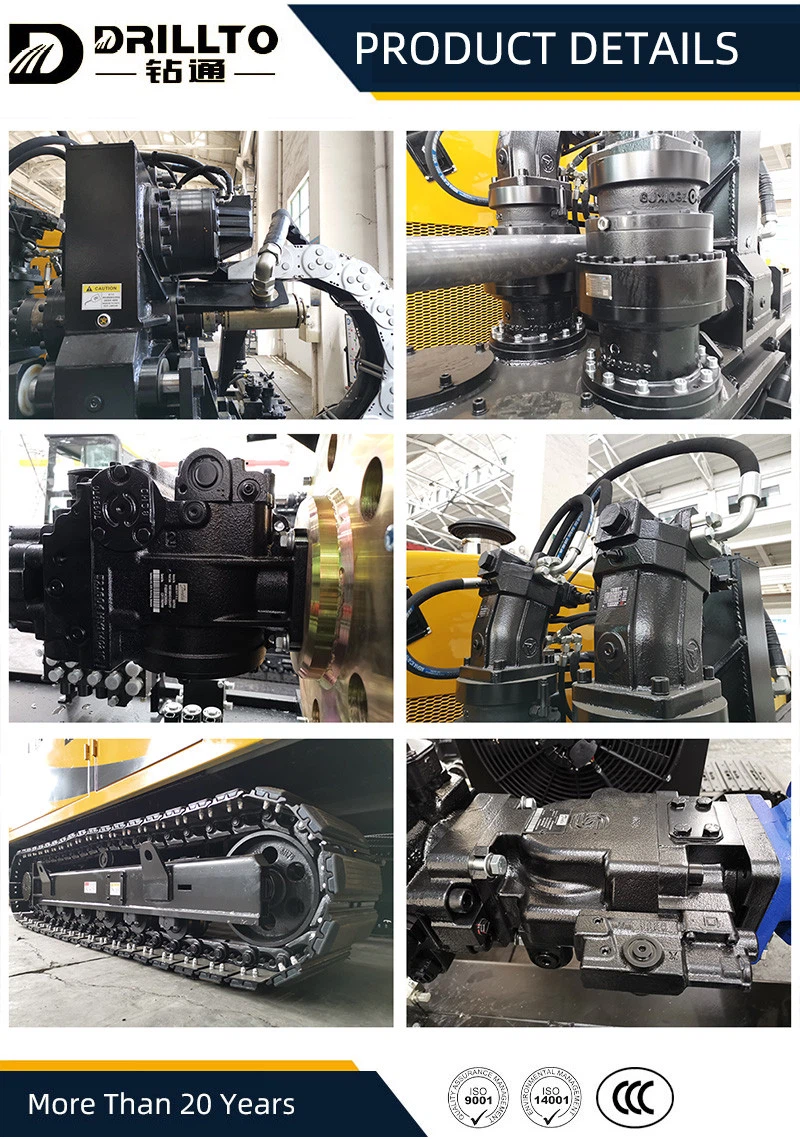

Product features
1. The rotary motor adopts imported French Poclain motor, which has large torque and high efficiency
2. The main pump uses the Danfoss variable closed-circuit pump and Danfoss load-sensing pump imported from the United States, with stable performance and high reliability
3. Rotating cab, wide line of sight, convenient for the driver to observe the drilling rig

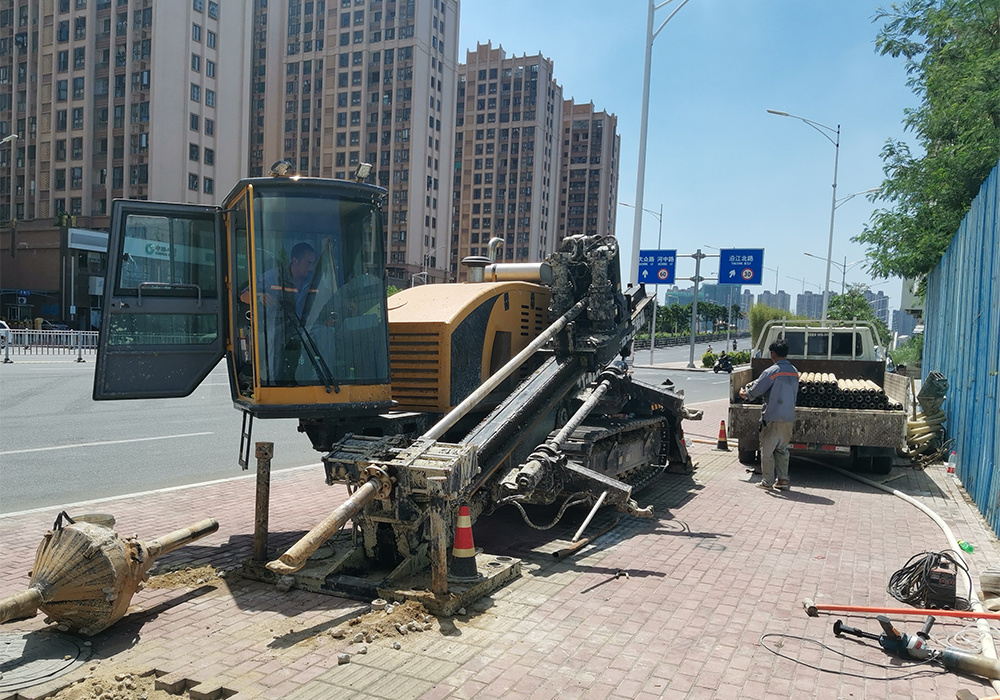

Construction scene
Video
Main Technical Parameters
|
Max Torque：18500N.m |
Rotation Speed：0-165rpm |
|
Max Pulling Force:420kN/840kN |
Max Thrusting Force：420/840kN |
|
Cummins Engine:197kW/2200rpm |
Pulling Speed：0-50m/min |
|
Max Mud Pump Displacement：450L/min |
Max Mud Pump Pressure：8Mpa |
|
Walking Speed:2.3km/h |
Entry Angle:8-20° |
|
Weight:14000kg |
Dimension(mm):6980*2280*2500 |
|
Rod Size:Φ83x3000mm |
Reamer Sizes:Φ200-Φ900 |
