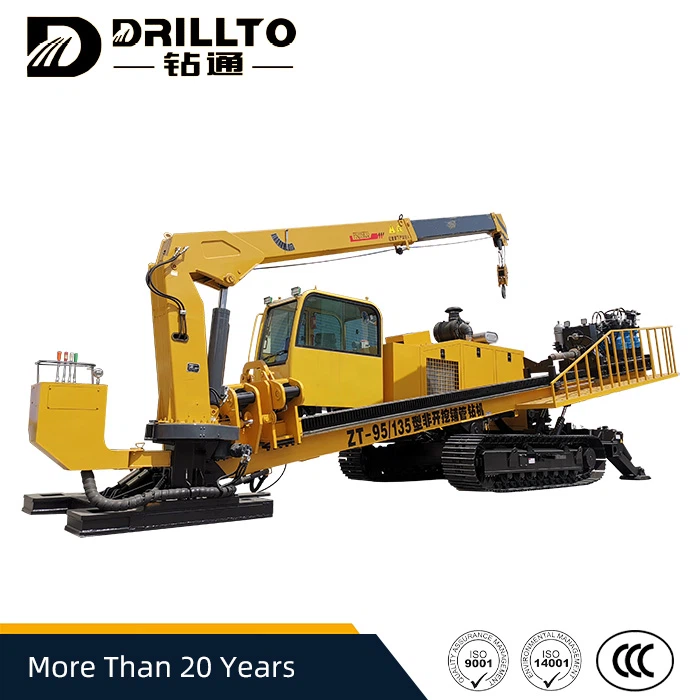

95/135T HDD Machine
ZT-95/135
The model of this HDD Machine For Underground Drilling is ZT-95/135. The whole machine has excellent performance in various parameters: high speed, high torque, fast push-pull speed, good controllability, energy saving and high efficiency, smart and convenient. The key parts of the hydraulic system of the drilling rig are imported or joint venture brands with reliable performance; the vehicle CAN bus control has high precision, fast response and high reliability; the system adopts imported Danfoss or Murphy controllers and displays, and the human-machine interaction is simple and comfortable. The construction is more scientific and efficient.
Introduction
The model of this HDD Machine For Underground Drilling is ZT-95/135. The whole machine has excellent performance in various parameters: high speed, high torque, fast push-pull speed, good controllability, energy saving and high efficiency, smart and convenient. The key parts of the hydraulic system of the drilling rig are imported or joint venture brands with reliable performance; the vehicle CAN bus control has high precision, fast response and high reliability; the system adopts imported Danfoss or Murphy controllers and displays, and the human-machine interaction is simple and comfortable. The construction is more scientific and efficient.
Product features

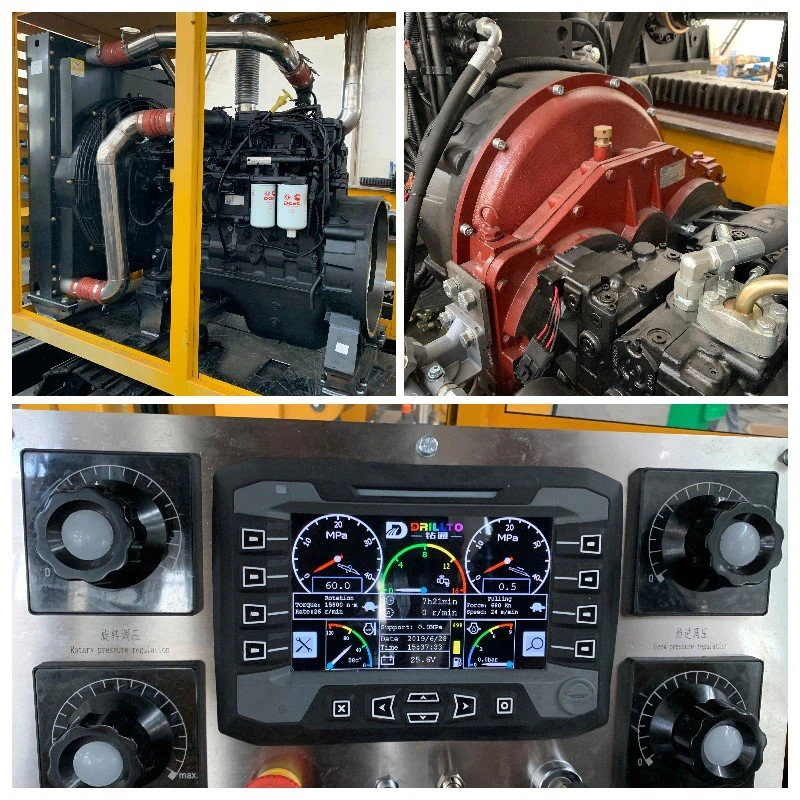

1. Use a powerful EFI engine with up to 360 horsepower.
2. In order to improve the pump's input speed and output power, a speed-increasing transfer case is used.
3. Use a Danfoss 7-inch display with full parameters, a warm user interface, and high intelligence.
|
Max Torque： |
36000N.m |
Rotation Speed： |
0-135rpm |
|
Max Pulling Force: |
950/1350kN |
Max Thrusting Force： |
950/1350KN |
|
Cummins Engine: |
264kW/2200rpm |
Pulling Speed： |
0-60m/min |
|
Max Mud Pump Displacement： |
800L/min |
Max Mud Pump Pressure： |
10MPa |
|
Walking Speed: |
2-3km/h |
Entry Angle: |
10-18° |
|
Weight: |
26500kg |
Dimension(mm): |
12100/10900*2600*2950 |
|
Rod Size: |
φ102*4500/6000mm |
Reamer Sizes: |
φ300-φ1200 |
|
Crane Size: |
3.2 Ton |
Monitor: |
Danfoss DP700 |
Company profile

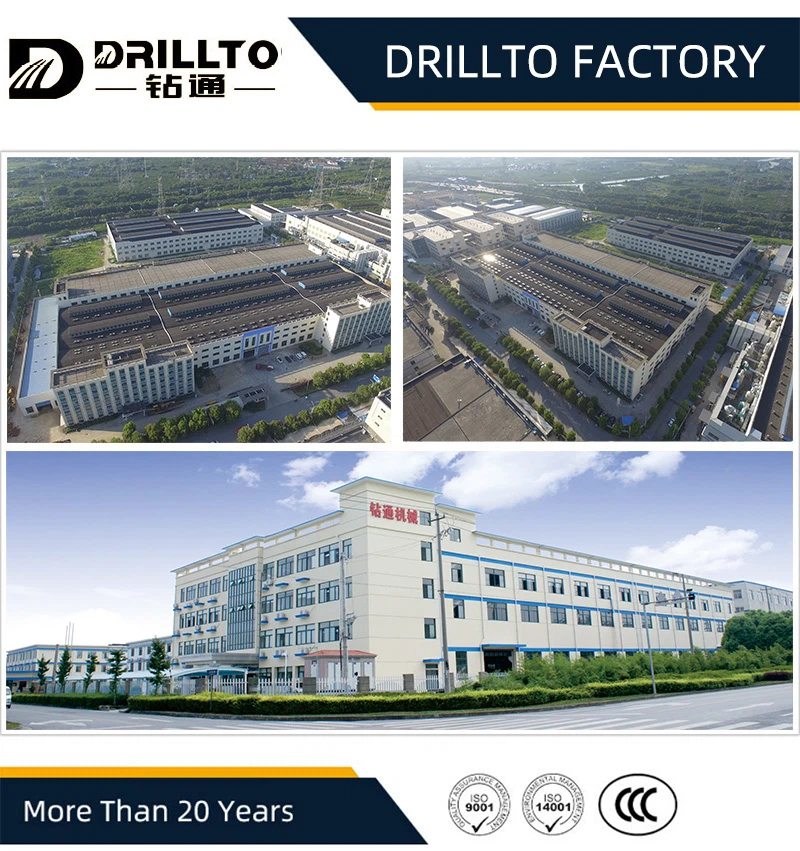

Since the Drillto rods factory started its rods production in 2004, the company has completed the whole chain production from HDD rig to drill rods, which provide professional one-stop solutions to clients. Drillto passed CE certification in 2007, in 2008, passed ISO9000 and ISO4000, was awarded national high-tech enterprises, national security standardization certification, provincial trenchless equipment engineering technology research center, provincial enterprise credit through standard, enterprise intellectual property management standard, enterprise technology center certification, Drillto is the first batch of recommend export enterprises by CCPIT (China council for the promotion of international trade).
