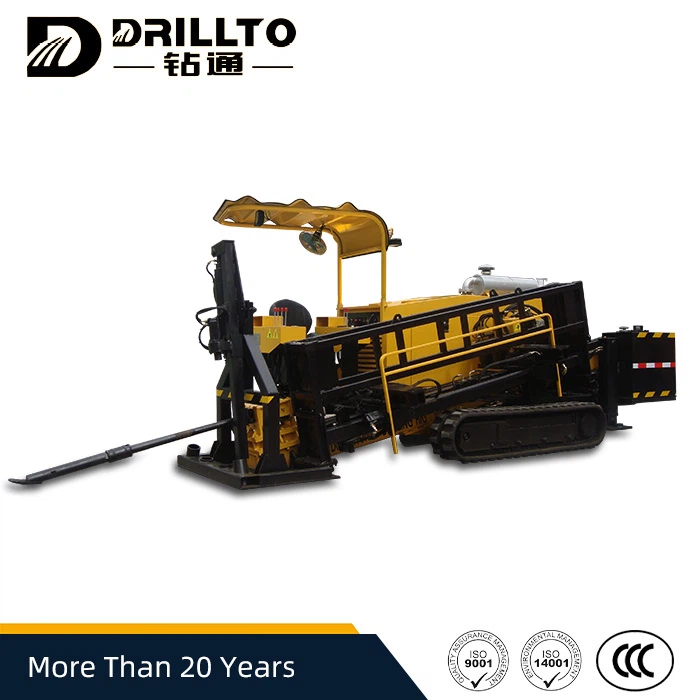

12DF HDD Machine
ZT-12DF
12 Ton Horizontal Directional Drilling Machine uses Dublin adapters for excellent sealing performance, Pomco pump with strong power and stable performance, and functions such as hydraulic grippers, hydraulic ground anchors, and automatic upper rod boxes to save labor.
Introduction
12 Ton Horizontal Directional Drilling Machine uses Dublin adapters for excellent sealing performance, Pomco pump with strong power and stable performance, and functions such as hydraulic grippers, hydraulic ground anchors, and automatic upper rod boxes to save labor. The drilling rig has compact structure, high efficiency and energy saving, quiet construction and small footprint.

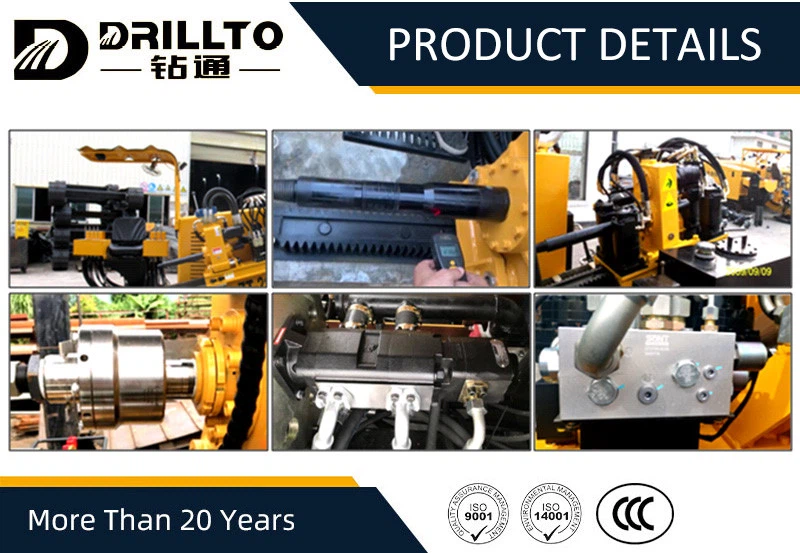

Product features
1. High rotation speed - measured 240 rpm
2. Using Eaton dual motors to control the rotation, the incidence angle is low
3. American Dublin rotary joint, precision sealing guarantee
4. The main pump is the American Pomke triple pump with stable performance, and the joints use flange clips with good sealing performance.
5. The two-speed valve adopts Italian-SANT brand, with stable performance and strong control
6. The wave-shaped awning has good rain shelter, with fans and lighting, and the construction operation is user-friendly
Main Techical Parameters
|
Max Torque: |
4500N.m |
Rotation Speed: |
0-200rpm |
|
Max Pulling Force： |
120 kN |
Max Thrusting Force: |
120 kN |
|
Cummins Engine: |
93kW/2200rpm |
Pulling Speed: |
0-60m/min |
|
Max Mud Pump Displacement: |
180L/min |
Max Mud Pump Pressure: |
8Mpa |
|
Walking Speed: |
2-4km/h |
Entry Angle： |
12-20° |
|
Weight： |
6500kg |
Dimension （mm）: |
5800*2050*2200 |
|
Rod Size: |
Φ60´3000MM |
Reamer Size: |
Φ200-Φ700 |
|
Open seat with cover: |
Fan & light |
Rod Box: |
4*8=32 pieces |
