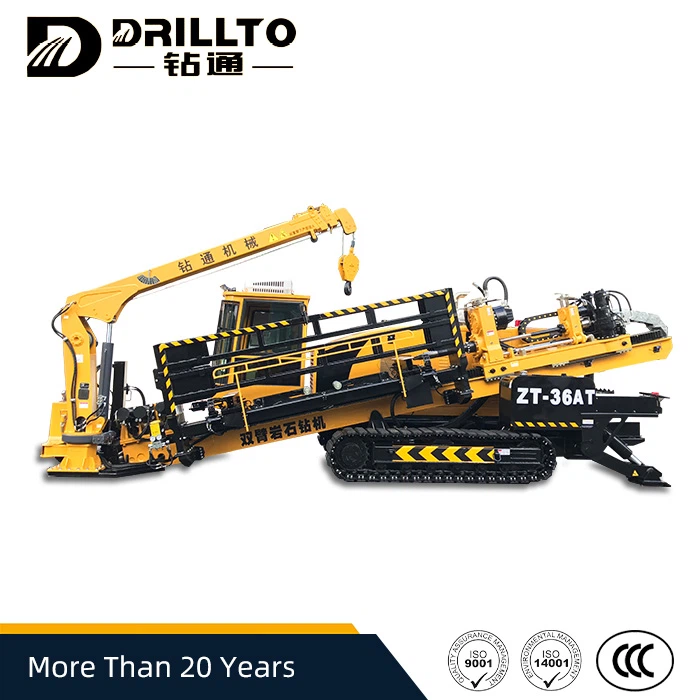

36AT HDD Machine
ZT-36AT The inner drill rod motor of 36T HDD Machine adopts the Danfoss brand, and the two-speed valve is the Italian-SANT brand. It has high construction efficiency, high configuration, high guidance accuracy, and mud saving. It can be effectively used in ordinary soil and rock layers. . We can also customize the relevant power according to your actual needs.
Introduction
The inner drill rod motor of 36T HDD Machine adopts the Danfoss brand, and the two-speed valve is the Italian-SANT brand. It has high construction efficiency, high configuration, high guidance accuracy, and mud saving. It can be effectively used in ordinary soil and rock layers. . We can also customize the relevant power according to your actual needs.
Main Technical Parameters
|
Main Technical Parameters of ZT-36AT |
|||
|
External Torque: |
15000N.m |
Rotation Speed: |
0-190rpm |
|
Inner Torque: |
2700N.m |
Rotation Speed: |
0-195rpm |
|
Max Pulling Force: |
360 kN |
Max Thrusting Force: |
360 kN |
|
Cummins Engine III: |
179kW/2200rpm |
Pulling Speed: |
0-20m/min |
|
Max Mud Pump Displacement: |
400L/min |
Max Mud Pump Pressure: |
10Mpa |
|
Moving Speed: |
2-4km/h |
Entry Angle： |
8-20° |
|
Weight： |
14500kg |
Dimension （mm）: |
8350*2280*2500 |
|
Rod Size: |
Φ89´3000MM |
Reamer Size: |
Φ200-Φ900 |
|
Rod Size: |
Φ50´3000MM |
Crane Size: |
2T |
|
Cabin with AC： |
Can turn 15° |
Rod Box:: |
18 pieces （9*2） |

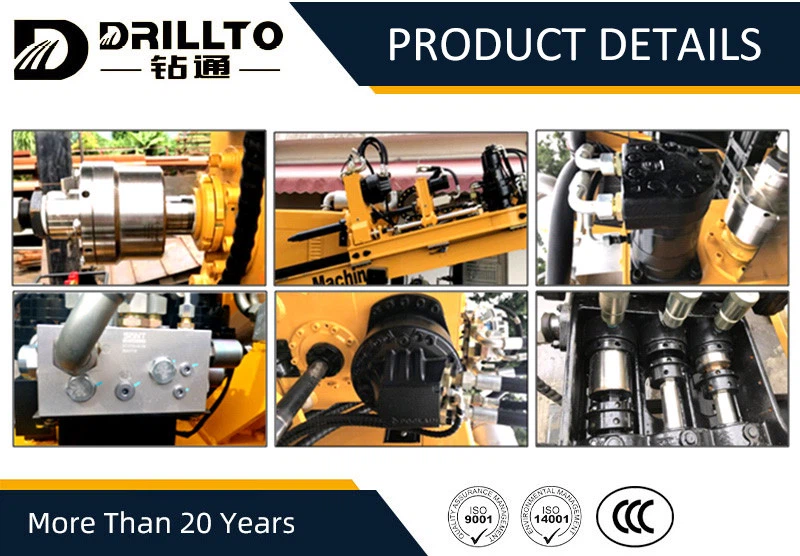

Product details
