50/100CDF HDD Machine

Introduction

The model of this Trenchless Horizontal Directional Drill Rig Machine is ZT-50/100CDF, which adopts electric direct injection engine, which has strong power and high fuel consumption; high speed, high torque, high efficiency, and smooth operation; the thrust and rotation adopts plunger pump and column Plug motor, rotation and thrust can be continuously variable, and the transmission efficiency is high. The systems used are all volumetric speed control systems with low heat generation. Small size and convenient construction.

Mechanical Properties

1．Cummins Diesel Engine QSC8.3-C260,194kw/2200rpm.

2．Steel crawler mounted with 96pcs rubber blocks;

3．Rack & Pinion,Poclain rotary motor (made in France) ,

4．The main pump Sauer-Danfoss .

5．Max.Spindle torque :22000N.m;  Spindle speed :0-60rpm,0-170rpm,

6．Pullback force：500/1000KN ,Thrust force :500/1000KN;

7．Semi-automatic arm rod loader

8．YWB650/10 Mud pump with ceramic cylinder ;

9．Crane 2T，Cabin with AC

10．Max.mud flow rate/  Max.fluid pessure:650L/min@10Mpa.

11．Dimensions:7650*2300*2520mm, Weight:15T

12．Machine can be put into 40HQ container

13．HS CODE NO.:  8430412900

14．89*4500mm rods 100pcs and related part

Product details

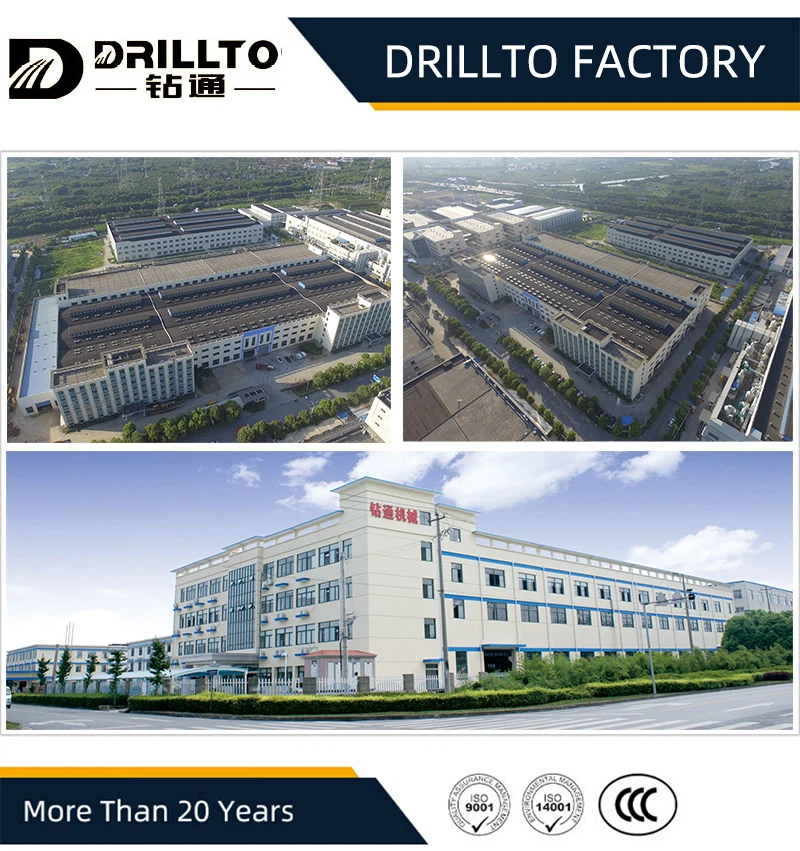

Company profile

Founded in 2000, Drillto Trenchless Co., Ltd is composed of a group of experts engaged in trenchless field research in very early stage in China, focusing on R & D and production of horizontal directional drilling (HDD) rigs, related drilling rods and tools, to provide customers one-stop solution with not only machine packages, but also construction training, technical guidance, machine maintenance and so on.Since its founding, the company has established a reputation in the industry with high quality products and after-sales service, and has developed 114 models for the market。The vision of the enterprise is: focusing on Trenchelss HDD field, constantly improve the user experience and achieve technical breakthrough, become a century-old enterprise in the field.
