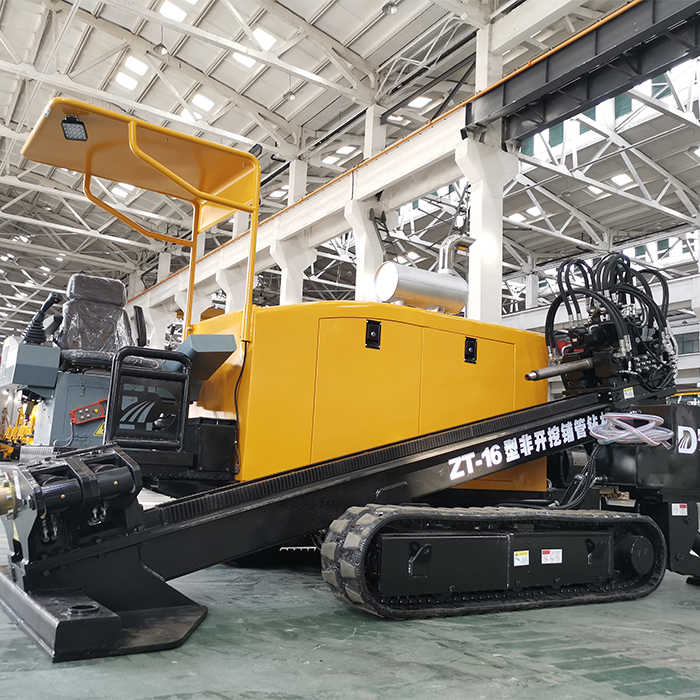

ZT-16 HDD Machine
Product Description：
The length of ZT-16 drill is only 4.2 meters, compact and short, convenient for transportation. The rotation and thrusting use the Eaton motor. stable performance high efficiency, the typical small rig with large capacity. The drill handle is easy to control, switching function is convenient, the seat is comfortable and equipped with sunshade. φ60* 2000mm drill rods. Stable and reliable, fast drilling for short distance without bending.
Product Advantages：
1. Rotation and thrusting both use Eaton gerotor motor, stable performance with full power.
2. Multi-function button handle, comfortable seat and sun shade, user-friendly console design.
3. Compact structure of rig design and reasonable，tubing layout to reduce tubing wear and tear.
Main Technical Parameters
|
Max Torque： |
4500N.m |
Rotation Speed： |
0-170rpm |
|
Max Pulling Force: |
160kN |
Max Thrusting Force： |
160KN |
|
Cummins Engine: |
97kW/2200rpm |
Pulling Speed： |
0-60m/min |
|
Max Mud Pump Displacement： |
180L/min |
Max Mud Pump Pressure： |
10MPa |
|
Walking Speed: |
2.5km/h |
Entry Angle: |
8-20° |
|
Weight: |
26500kg |
Dimension(mm): |
4200x2000x2300 |
|
Rod Size: |
φ60*2000mm |
Reamer Sizes: |
φ200-φ500 |
|
Crane Size: |
N/A |
Monitor: |
N/A |
