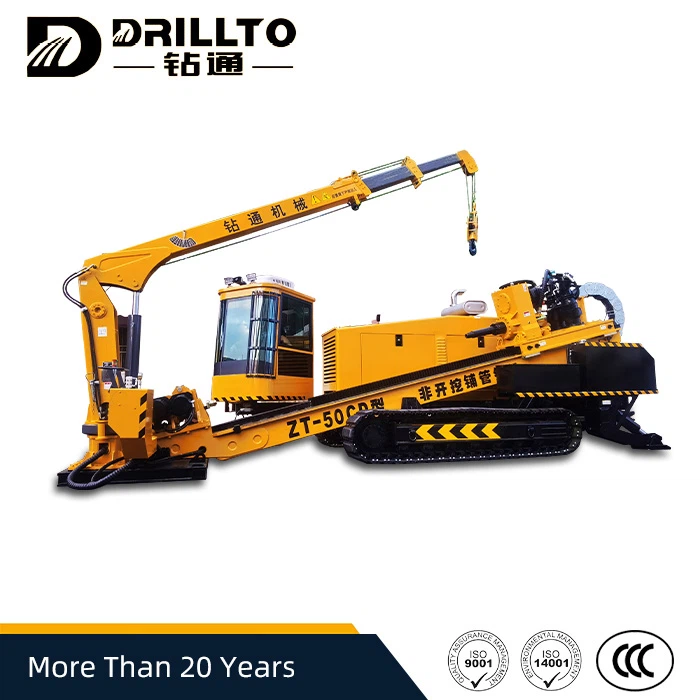

50CD HDD Machine
ZT-50CD
High Speed HDD Machine is a drilling rig with Poclain high torque motor, strong impact resistance and reliable performance. It can be equipped with 3m or 4.5m drill pipe. The total length of the drilling rig does not exceed 7.35m. The structure is neat and compact, and the construction area is little.
Introduction
High Speed HDD Machine is a drilling rig with Poclain high torque motor, strong impact resistance and reliable performance. It can be equipped with 3m or 4.5m drill pipe. The total length of the drilling rig does not exceed 7.35m. The structure is neat and compact, and the construction area is little.
Product features

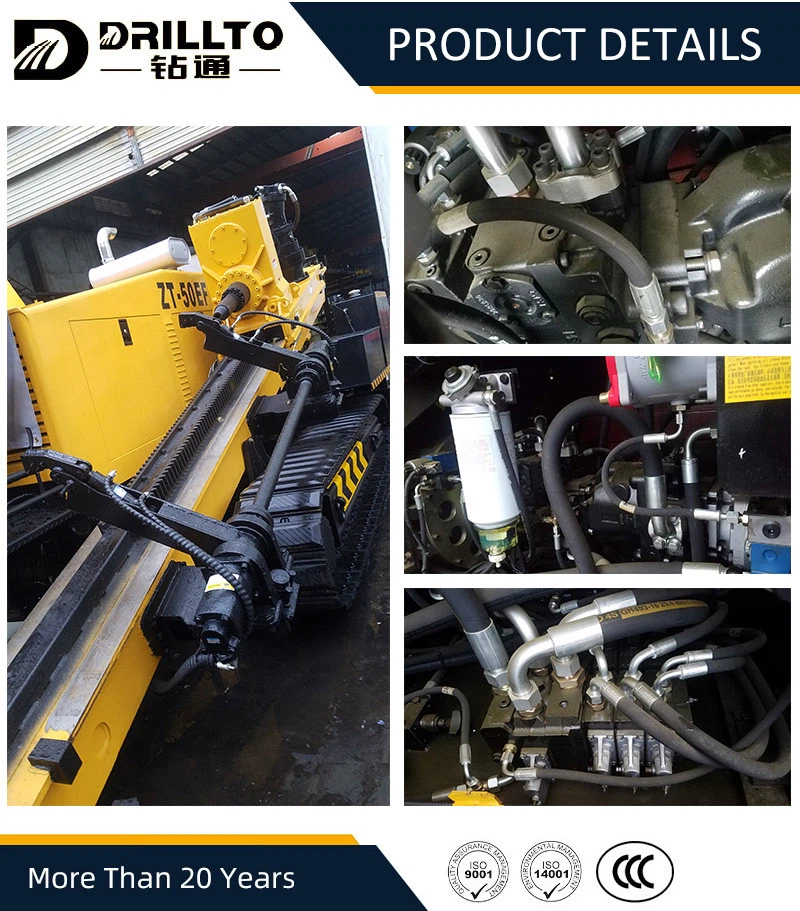

1. The main pump uses the imported brand danfoss plunger pump, with a displacement of 100cc for both rotation and feed, with strong power
2. The rotation uses a high-torque French Poclain motor, the speed can reach 180rpm, which is reliable and high-efficiency
3.: Thao Danfoss control valve, can stepless speed regulation, precise control action
Main Technical Parameters
|
Max Torque：22000N.m |
Rotation Speed：0-180rpm |
|
Max Pulling Force:50kN/1000kN |
Max Thrusting Force：50/1000kN |
|
Cummins Engine:194kW/2200rpm |
Pulling Speed：50m/min |
|
Max Mud Pump Displacement：650L/min |
Max Mud Pump Pressure：10Mpa |
|
Walking Speed:2.5-3.25km/h |
Entry Angle:8-20° |
|
Weight:15500kg |
Dimension(mm):7350*2230*2350 |
|
Rod Size:Φ83x3000mm |
Reamer Sizes:Φ300-Φ1000 |
