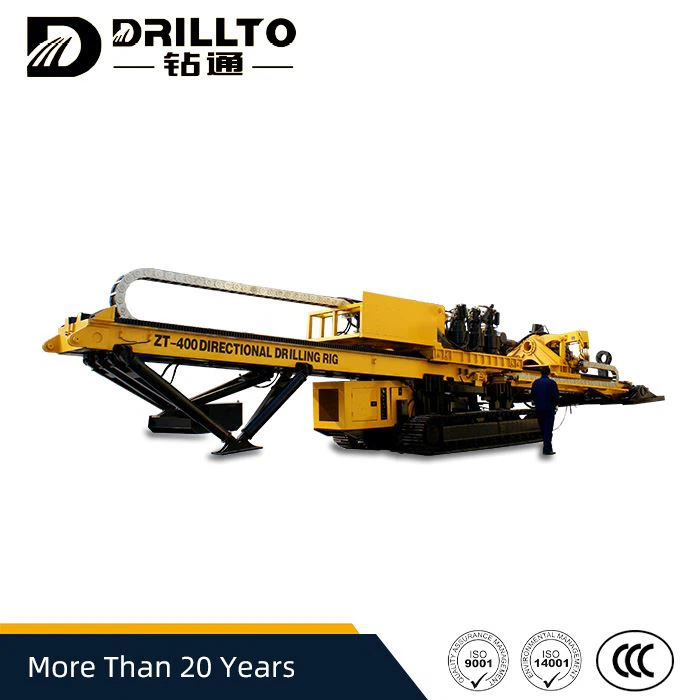

400T HDD Machine
Introduction
The power source and main hydraulic components of this Heavy Duty HDD Drilling Machine are foreign advanced products, with reliable performance and strong power. The engine can be started by a single unit for guiding and other construction. It is equipped with an 11-inch imported artificial intelligence touch LCD screen for energy saving and emission reduction. It is easy to operate, intelligently stores data, and is equipped with an independent cab for comfortable operation.
Product features
1. Rotary feed double closed system, stable and high efficiency
2. The overall movement of the gripper is convenient to shackle, and the upper gripper can reduce the number of words in the overall movement
3. Adopt foreign imported brand quick connector, reliable sealing
Main Technical Parameters
|
Max Torque：130000N.m |
Rotation Speed：0-120rpm |
|
Max Pulling Force:4000kN |
Max Thrusting Force：4000kN |
|
Cummins Engine:2*373kW/1900rpm |
Pulling Speed：0-30m/min |
|
Max Mud Pump Displacement：3000L/min |
Max Mud Pump Pressure：15Mpa |
|
Walking Speed:1.2km/h |
Entry Angle:8-16° |
|
Weight:53000kg |
Dimension(mm):19500*3200*3500 |
|
Rod Size:Φ140/168*9600mm |
Reamer Sizes:Φ200-Φ800 |
