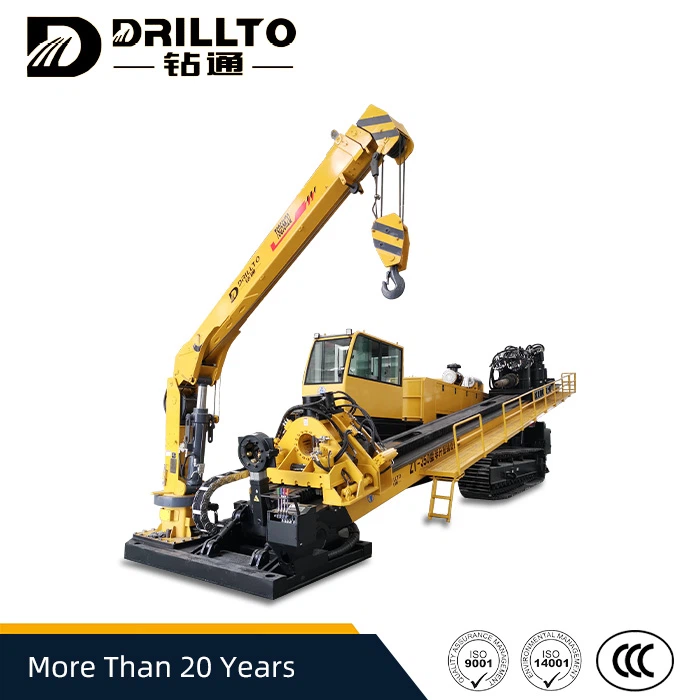

350-500T HDD Machine
Introduction
The power source and main hydraulic components of this HDD Drilling Machinery are foreign advanced products with reliable performance and strong power. Equipped with 11-inch American Murphy artificial intelligence liquid crystal display system, easy to operate, intelligently store data, and intelligently switch between multiple work pages. The hydraulic system adopts double-closed and load-sensitive combined control, which has high transmission efficiency, low heat generation and energy saving. Optional power assist, pushing and pulling force up to 5000KN.
Main Technical Parameters
|
Max Torque： |
130000N.m |
Rotation Speed： |
0-120rpm |
|
Max Pulling Force: |
3500/5000kN |
Max Thrusting Force： |
3500/5000kN |
|
Cummins Engine: |
2*264kW/2200rpm |
Pulling Speed： |
0-33m/min |
|
Walking Speed: |
0-1.5km/h |
Entry Angle: |
8-15° |
|
Weight: |
58000kg |
Dimension(mm): |
18000×3200×3500 |
|
Rod Size: |
Φ140*9600mm |
Reamer Sizes: |
Φ1600 |

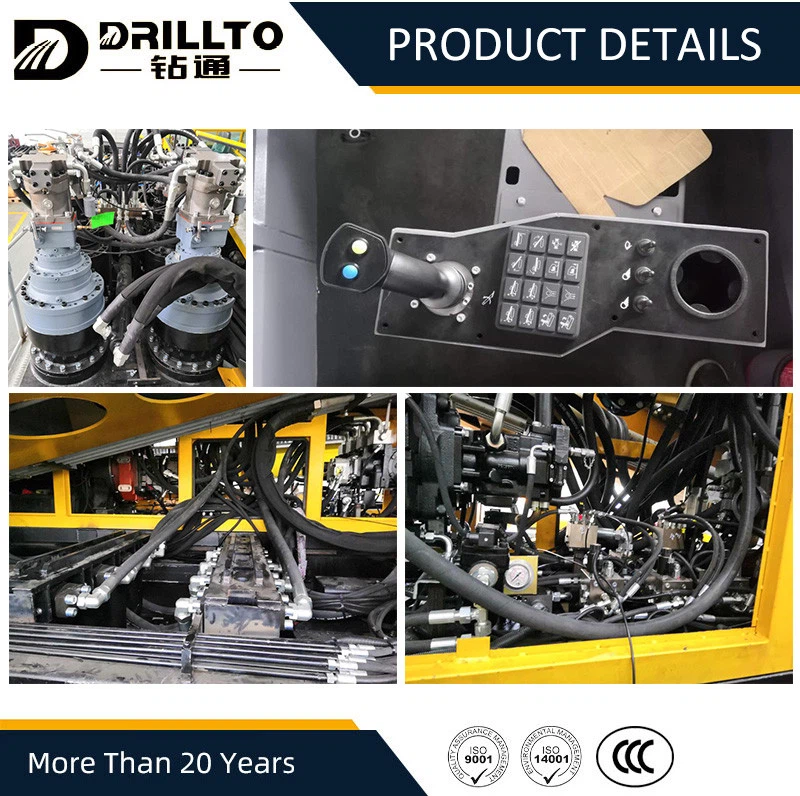

Product details
