100/140T HDD Machine

Introduction

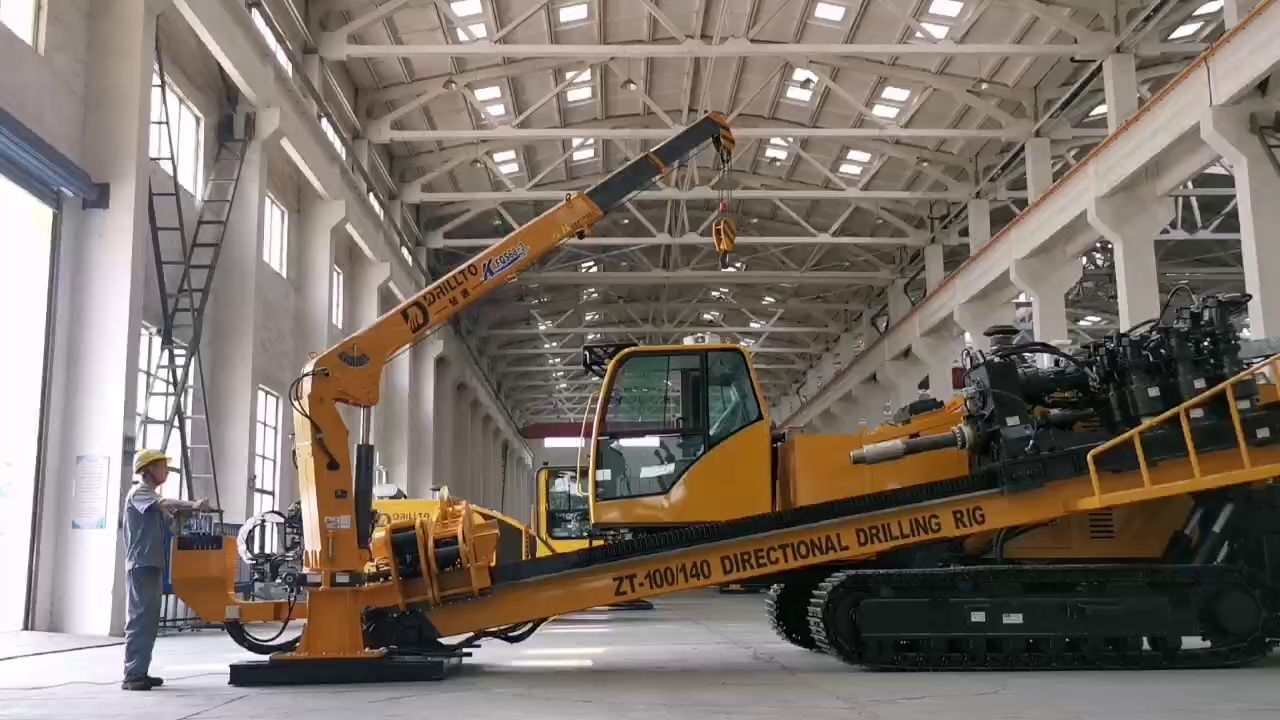

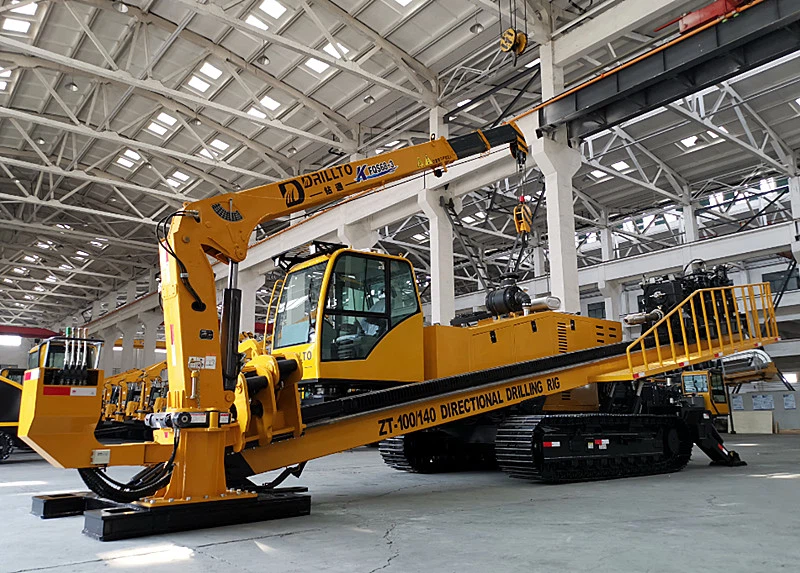

This Directional Drilling Rig, model ZT-100/140, adopts digital screen control, Cummins diesel engine, Sauer-Danfoss oil pump and other imported accessories. We can also provide you with professional installation technical guidance.

Product details

Specifications

Product name: Directional Drilling Rig

1. Digital Screen Control

2. Cummins Diesel Engine 6CTAA8.9-C360 264kw/2200rpm,

3. Max.Spindle torque 38000Nm,

4. Spindle speed 0-54rpm,0-135rpm.

5. Rack & pinion pull and push,

6. Max.Pullback(with 40T pinion puller)/Thrust force：1400kN/1000kN,

7. Max carrige speed： 60m/min, Carriage stroke 6900mm,

8. Use OD114*6m drill rod, NC38 threads.

9. Entry Angle: 10-20°.800L/min Mud pump on rig,

10. Max.fluid/pressure:800L/min@10Mpa.

11. Main hydraulic component:

12. Sauer-Danfoss oil pump 90L100KP, 90L55KP, ERL100BBS. Danfoss/Sam pistons Hydr-motor SH7V160 H1B1160,

13. Brevini gearbox BL1572,BL1513, Cabin with AC, 3.2T Crane.

14. Dimensions: 12050*2850*3250mm   Weight:26T

15. Delivery Dimension：(remove anchor plate and crane： 11800*2610*3250mm,  plate and crane put in the rods container)

16. HS CODE NO.:  8430412900

17. 102*6000mm/114*6000mm rods 100pcs and related parts

Company Profile

Drillto has focused on trenchless directional drilling field for more than 20 years, continuously improving user experience, making technological breakthroughs, and inspiring to become a century-old enterprise in the trenchless field. Drillto has won the national high-tech enterprises for both Shenzhen and Wuxi companies, and has been successively named 'The Leading Enterprises', 'the Trenchless Equipment Engineering Technology Research Center', honored by the "Land and Resources Science and Technology First Prize", obtained IS09001, IS014001 quality and environmental management dual system certification, environmental protection certification. CE certification. The company has been recognized by authoritative organizations in corporate business processes and quality control.

It has now accumulated won 168 technical patents towards HDD field, including 27 invention patents and 141 utility model patents, Drillto products have been recognized as high-tech products for many times. The team has been focusing on HDD Fields and deepening for many years, and shoulders the responsibility of leading the HDD industry forward.
