280T HDD Machine

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Introduction

Directional Drilling Machines are steerable trenchless drilling rigs used to install pipes, conduits and cables underground in shallow arcs. They are often used for installations under waterways and roads to avoid disturbing the ground above. All accessories used in this equipment are imported, and we can also customize according to your needs.

Mechanical Properties

1. Steel track machine,Cummins diesel engine：448Kw/1800rpm, with transfter case

2. Max.Spindle torque:90000N.m,Spindle speed:0-46rpm,0-120rpm;

3. Max.Pullback force:2800kN,Max.Thrust force:2800kN,

4. Carriage stroke:10500mm,use 140*9600mm 5 1/2 drill rod,

5. 5T crane,Cabin with aircondition for 2 worker,

6. Entry angle : 8-18°

7. Pulling speed: 0-40m/min

8. Walking speed : 1km/h-2km/h

9. Cable connection system,

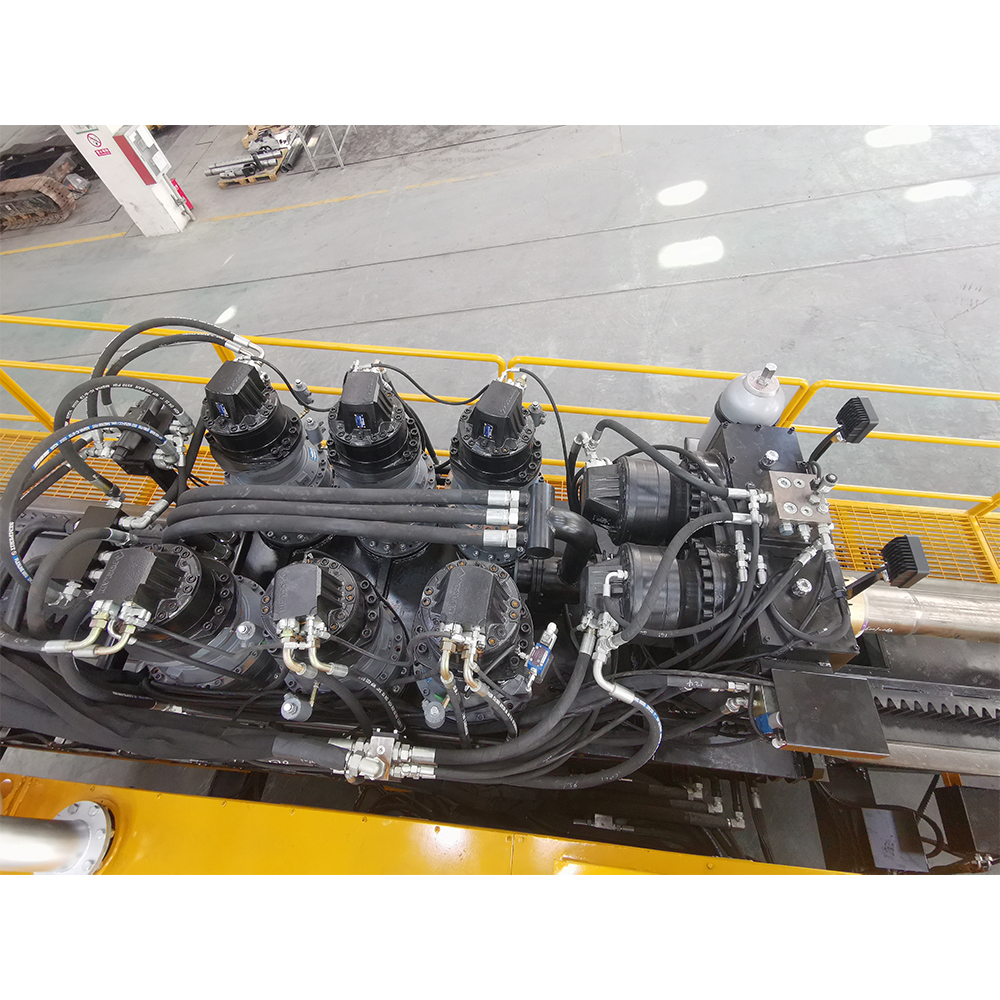

10. 2 POCLAIN MHP motors for rotation,

11. 6 POCLAIN MHP motors pull and push,

12. 4 Sauer Danfoss oil pumps for rotation ,

13. 2 Sauer Danfoss oil pumps pull and push,

14．1 Sauer Danfoss oil pump for auxiliary system

15．Closing circuit system,

16．Screen Monitor ,

17．crawler walking remotely controlling

18．Dimension:17*3.4*3.45m weight:43T.

19．HS CODE NO.: 8430412900

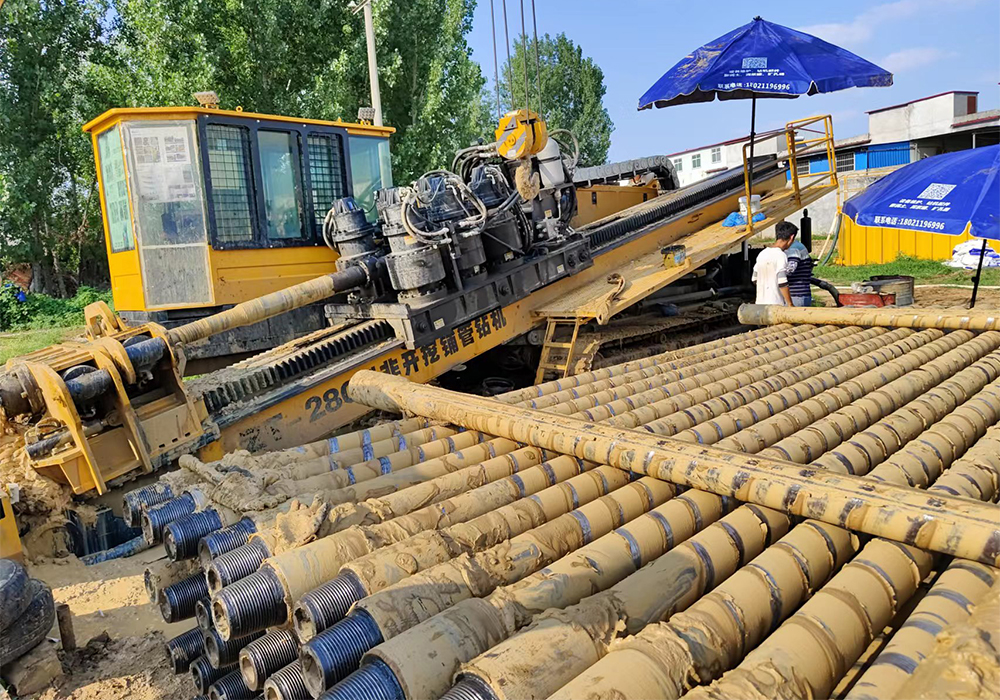

20．140*9600mm rods 200 pcs and BW1500/12 mud pump and mud mixing system 20M^3 and GNMS-500B Mud recyclone system

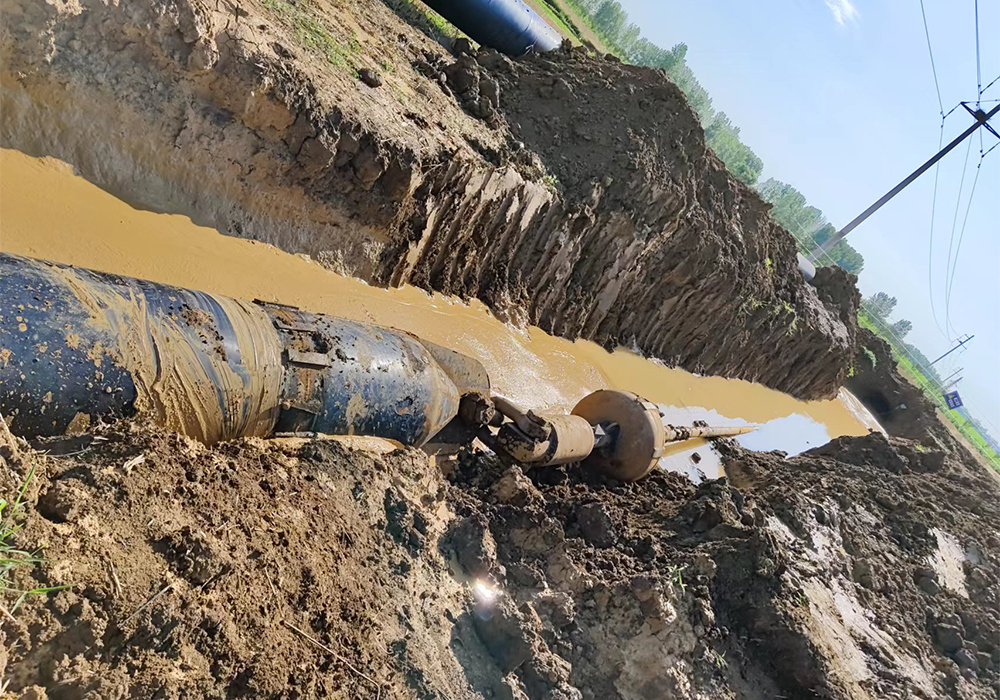

Shaanxi 711 Steel Pipe, 831 meters in length, used for the South-to-North Water Diversion Project.

Video

Main Technical Parameters

Product name	Directional Drilling Machines
Part name	Model
Cummins Engine	448Kw/1800rpm
Transfer Case
Oil pump	Sauer-Danfoss
	Sauer-Danfoss
	Sauer Danfoss
	CBKP
Motor	POCLAIN MHP
Motor	POCLAIN MHP
Reducer	ZL/ZCH
Spindle Torque	90000N.M
Thrust/Pull Force	2800KN
Pullback Force	2800KN
Carriage Stroke	10500mm
Crawler walking remotely controlling box	Sauer JC120
Drill rod	140*9600mm
Max. Reamer	1500MM
Entry Drill Angle	8°-18°
Crane	5T
Size(LWH)	1700034003450MM

Company Profile

Founded in 2000, Drillto Trenchless Co., Ltd is composed of a group of experts engaged in trenchless field research in very early stage in China, focusing on R & D and production of horizontal directional drilling (HDD) rigs, related drilling rods and tools, to provide customers one-stop solution with not only machine packages, but also construction training, technical guidance, machine maintenance and so on. in line with the "honest man, steadfast work" principle,Drillto has developed 114 models for the market, Drilling equipment is currently exported to 33 countries, with accumulate 168 HDD related technology patents including 27 invention patents.
