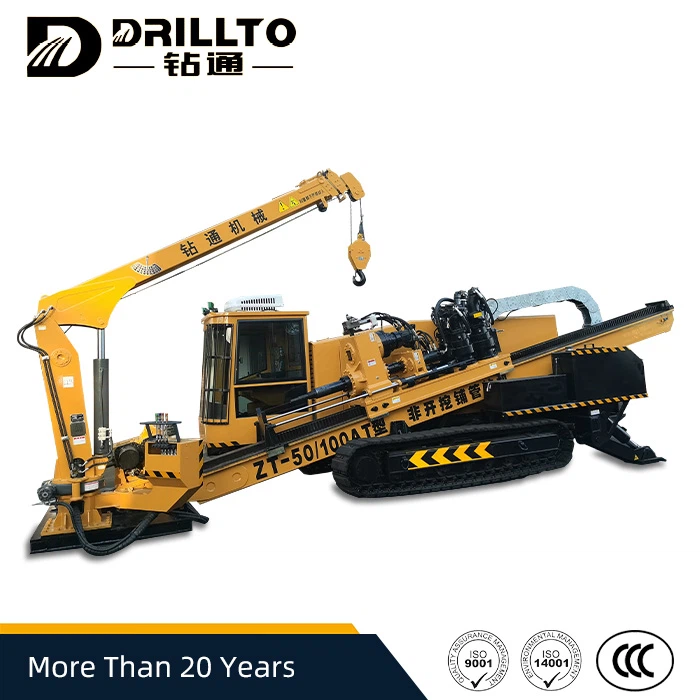

50/100AT HDD Machine
ZT-50/100AT
Drilling rig is a kind of construction machinery specially designed for pipeline laying without subsidence of the ground. The Automatic Horizontal Directional Drilling Machine produced by our company has the characteristics of high construction efficiency, high configuration and low consumption of drilling tools, and can be widely used in It is used for the laying of urban water supply, gas, natural gas, electricity, oil and other pipelines.
Introduction
Drilling rig is a kind of construction machinery specially designed for pipeline laying without subsidence of the ground. The Automatic Horizontal Directional Drilling Machine produced by our company has the characteristics of high construction efficiency, high configuration and low consumption of drilling tools, and can be widely used in It is used for the laying of urban water supply, gas, natural gas, electricity, oil and other pipelines.
Product Features
1. Dual power heads, internal and external drill pipe motor oil pumps are all imported from Danfoss, imported oil pipes, with stable performance.
2. The double-arm drill pipe is connected by a hexagonal sleeve.
The 3.650L/min mud pump and the boosting force can reach 100 tons, which meets the needs of large-diameter rock reaming.
Main Technical Parameters
|
External Torque: |
15000N.m |
Rotation Speed: |
0-190rpm |
|
Inner Torque: |
2700N.m |
Rotation Speed: |
0-195rpm |
|
Max Pulling Force: |
360 kN |
Max Thrusting Force: |
360 kN |
|
Cummins Engine III: |
179kW/2200rpm |
Pulling Speed: |
0-20m/min |
|
Max Mud Pump Displacement: |
400L/min |
Max Mud Pump Pressure: |
10Mpa |
|
Moving Speed: |
2-4km/h |
Entry Angle： |
8-20° |
|
Weight： |
14500kg |
Dimension （mm）: |
8350*2280*2500 |
|
Rod Size: |
Φ89´3000MM |
Reamer Size: |
Φ200-Φ900 |
|
Rod Size: |
Φ50´3000MM |
Crane Size: |
2T |
|
Cabin with AC： |
Can turn 15° |
Rod Box: |
18 pieces （9*2） |
|
Weight： |
18000kg |
Dimension （mm）: |
9800*2200*2500 |
|
Rod Size: |
Φ102´4000MM |
Reamer Size: |
Φ200-Φ900 |
|
Rod Size: |
Φ60´4000MM |
Crane Size: |
2T |
