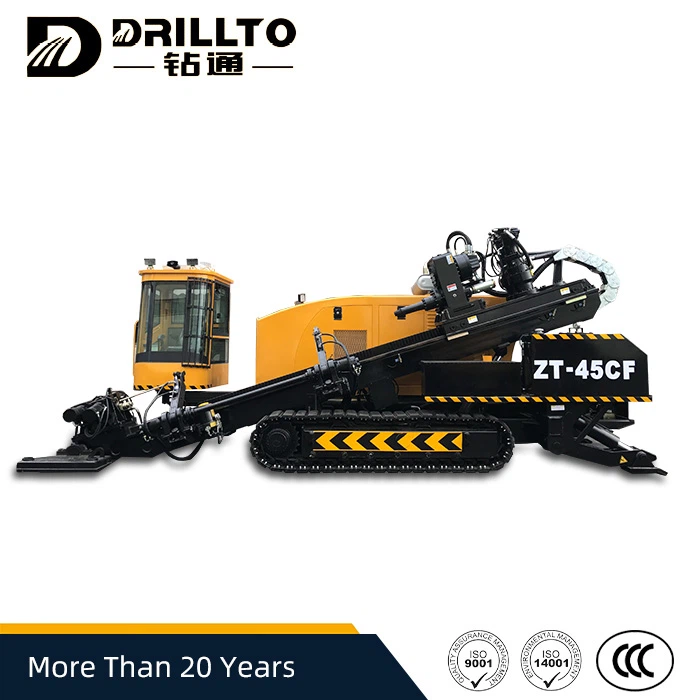

45 Ton HDD Drilling Machine
ZT-45CF
45 Ton Hdd Drilling Machine is a drilling rig with high speed, high efficiency, high torque and low failure rate. The hydraulic oil pump and control handle are imported Danfoss products, and the maximum recovery can reach 90 tons. Small machines with large mud pump displacement can meet the needs of large diameter hole reaming.
Introduction
45 Ton Hdd Drilling Machine is a drilling rig with high speed, high efficiency, high torque and low failure rate. The hydraulic oil pump and control handle are imported Danfoss products, and the maximum recovery can reach 90 tons. Small machines with large mud pump displacement can meet the needs of large diameter hole reaming.
Product features
1. The hydraulic main pump adopts the American Sarao Danfoss oil pump, and the control system is Danfoss proportional valve
2. The rotation uses a large torque sent by the Poclain motor, and the speed can reach 170rpm, which is reliable and efficient.
3. Equipped with 600L/min mud pump and inclined outriggers. Small machine with large mud pump displacement to meet the needs of large diameter hole reaming
Main Technical Parameters
|
Max Torque：19800N.m |
Rotation Speed：0-170rpm |
|
Max Pulling Force:450kN |
Max Thrusting Force：450kN |
|
Cummins Engine:194kW/2200rpm |
Pulling Speed：50m/min |
|
Max Mud Pump Displacement：600L/min |
Max Mud Pump Pressure：10Mpa |
|
Walking Speed:2.5-3.25km/h |
Entry Angle:3.4-21° |
|
Weight:14500kg |
Dimension(mm):7000*2280*2350 |
|
Rod Size:Φ83x3000mm |
Reamer Sizes:Φ300-Φ1000 |
